Fishery–Photovoltaic Integrated Eco Cage
A dual-purpose cage system combining solar power generation with efficient coastal aquaculture for sustainable, low-energy fish farming.

Fishery–Photovoltaic Integrated Eco Cage

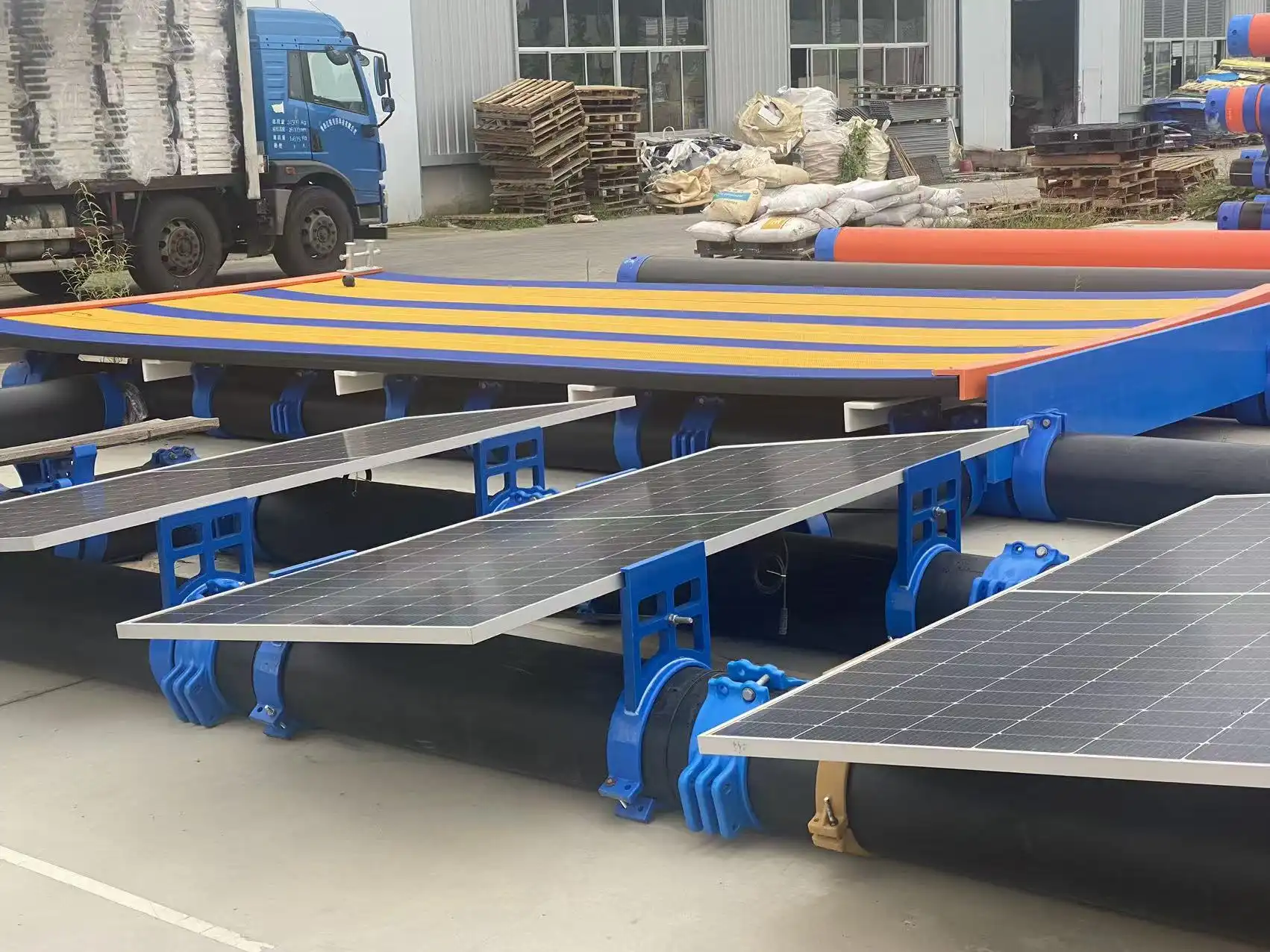

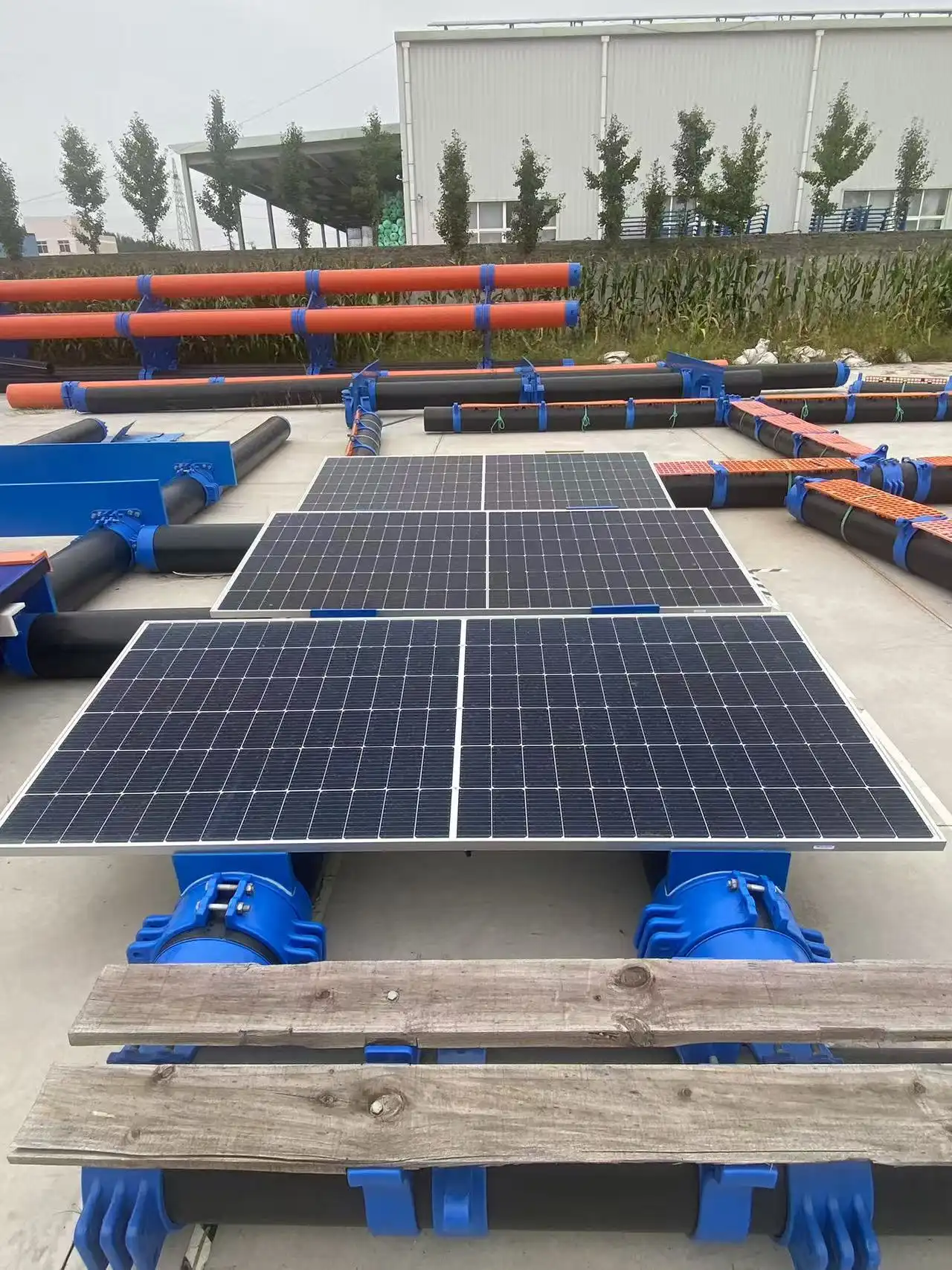

This innovative system combines floating photovoltaic panels with modern aquaculture cages, enabling simultaneous clean energy generation and efficient fish farming. Its eco-friendly design reduces operational costs, improves sustainability, and supports stable production, making it ideal for coastal farms seeking renewable power and high-performance aquaculture solutions.

Suitable for coastal areas, lakes and other waters, especially for areas with rural revitalization and industrial integration needs, as well as sunlight and aquaculture conditions,such as coastal fishing villages and villages around inland lakes, and can be customized according to requirements.

Request a Quote

Product Specification

Circular net cages are suitable for semi-open areas or aquaculture waters less affected by seasonal typhoons. Depending on customer needs, the circumference ranges from 20 meters to 300 meters, the net depth from 6 meters to 30 meters, and the effective volume can reach 150,000 cubic meters. This product has low overall cost, strong wind and wave resistance, and is easy to manage and maintain.
Netting System: Ultra-high molecular weight polyethylene, high-density polyethylene, PET, nylon; mesh size can be customized.
Performance Parameters:
Wind Resistance: Up to level 12.
Wave Resistance: Maximum 5 meters.
Flow Resistance: Maximum 1.5 m/s.

Perimeter 20m-25m 25m-40m 40m-60m 60m-90m 90m-120m 120m-160m 150m-200m 180m-300m
Floating Pipe Φ160mm Φ200mm Φ250mm Φ315mm Φ400mm Φ450mm Φ500mm Φ560mm
Bracket H160 H200 H250~H400 H315~H400 H400~H450 H450~H630
Handrail Pipe Φ75mm Φ90mm Φ110mm Φ110mm Φ125mm Φ140mm Φ160mm Φ160mm
Sinker Pipe Φ90mm Φ90mm Φ110mm Φ125mm Φ160mm

Why Choose Us

  • Durable HDPE structure ensures long-term, stable aquaculture performance.
  • Integrated solar design lowers energy costs and boosts sustainability.
  • Highly customizable system fits various marine environments and species.
  • Easy installation and low maintenance reduce overall operational burdens.
